M3+M3-3A RGB Controller With RF Receiver

To be able to purchase products from us, you need to have a trade account.

Radio Frequency RGB remote colour controller.

The remote uses a radio frequency of 433.92 MHz, with a reach of up to 50m. Features include an on/off button, colour wheel, brightness/speed buttons and a mode button for selecting effects: jumping, fading, cycling.

The colour controller operates on a low voltage 12~24V DC circuit, providing a PWM 3 channel output, ideal for controlling RGB LEDs.

£24.46
£20.38excluding VAT

In stock

Quantity Discount Per Item Price
5-9 5% £19.36
10-24 10% £18.34
25-49 15% £17.32
50-99 20% £16.30
100+ 25% £15.29
SKU: M3+M3-3A Categories: ,

Download Data Sheet

Description

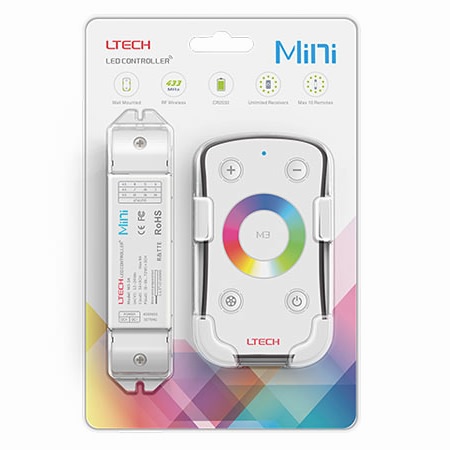

Package Contents

  • M3 Remote
  • M3-3A Receiver
  • Wall mounted remote control holder

Additional information

Weight 0.25 kg

1 review for M3+M3-3A RGB Controller With RF Receiver

  1. James Tomalin

    Used in kitchen dining room ceiling recess for mood and non-task bright lighting. In conjunction with traditional 2way switching and reflective paint in recess. I’d certainly recommend for those wanting a good quality, cost effective, robust rgb system which is simple to install. For: Diy, electrician, builder,restricted budget lighting Tip:make sure spark actually knows rgb led has 4 connections. No soldering needed!

Add a review

Your email address will not be published. Required fields are marked *

More Information

Remote Handset M3 Transmitter

Working voltage 3v (Battery CR2032)
Working Frequency 433.92MHz
Remote Distance 40-50m
Working Temp -20℃~55℃
Dimensions (mm) 104L 60W 9H

M3-3A Receiver

Output per channel 3A
Channels 3
Current 3 x 3A, 9A MAX
Voltage 12~24v
Max output power 108W/216W(12V/24V)
Dimensions (mm) 135L 30W 20H
