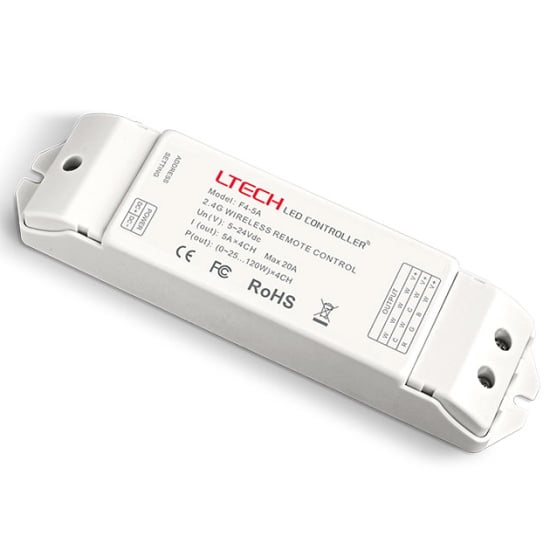

Wireless Zone Receiver Constant Voltage F4-5A
To be able to purchase products from us, you need to have a trade account.
Login or RegisterWireless zone receiver for low voltage circuits. With 4 output channels, this unit is ideal for controlling RGBW, RGB or single colour LED Strip.
The receiver requires a low voltage input. It receives an RF control signal from a suitable controller in order to supply the correct dimming output across 4 channels. The input and output is via screw terminals on the sides of the unit.
The receiver operates on a low voltage 5~24V DC circuit, providing a PWM output, ideal for dimming LED’s.
£54.14
£45.12excluding VAT
In stock
| Quantity | Discount | Per Item Price |
|---|---|---|
| 5-9 | 5% | £42.86 |
| 10-24 | 10% | £40.61 |
| 25-49 | 15% | £38.35 |
| 50-99 | 20% | £36.10 |
| 100+ | 25% | £33.84 |
Specification
| Input signal | 2.4GHz RF |
|---|---|
| Voltage | 5V~24V DC |
| Output | Constant Voltage |
| Channels | 4 |
| Current | 5A ×4CH Max 20A |
| Max output power | 100W/240W/480W(5V/12V/24V) |
| Dimensions (mm) | 175L 44W 30H |
