Description
Package Contents
- LT-904 Decoder and instructions.

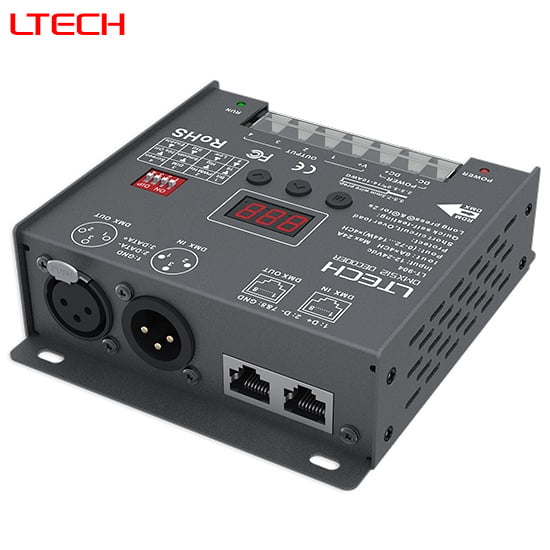

LT-904 DMX to PWM Decoder 4CH (XLR-3, RJ45)
To be able to purchase products from us, you need to have a trade account.
Login or RegisterDMX decoder for low voltage circuits. With 4 output channels, this unit is ideal for controlling RGBW, RGB or single colour LED Strip.

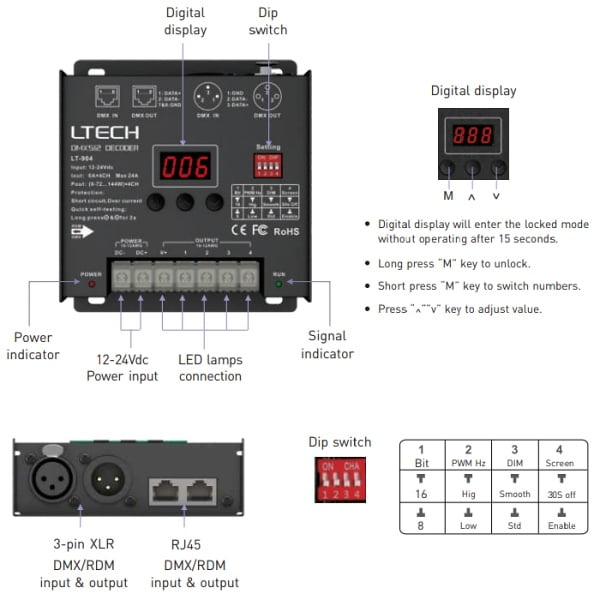

The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 4 channels. DMX connects via standard XLR-3 or RJ45 plugs. The low voltage supply and lights connect via screw terminals on the side of the unit.
The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
£61.31
£51.09excluding VAT
In stock
| Quantity | Discount | Per Item Price |
|---|---|---|
| 5-9 | 5% | £48.54 |
| 10-24 | 10% | £45.98 |
| 25-49 | 15% | £43.43 |
| 50-99 | 20% | £40.87 |
| 100+ | 25% | £38.32 |
Specification
LT-904 Decoder
| Input signal | DMX512 | |
|---|---|---|
| Voltage | 12v~24v | |
| Output | DC Constant Voltage | |
| Channels | 4CH | |
| Current | Max 24A | |
| Max output power | 288w/576w (12v/24v) | |
| Dimensions (mm) | 122L 110W 37H |
Download Data Sheet
Additional information
| Weight | 0.25 kg |
|---|
